Deep groove ball bearings are particularly versatile, have low friction, are optimized for low noise, low vibration and high speeds. They can accommodate radial and axial loads in both directions, are easy to install and require less maintenance than many other types of bearings.
Radial Ball Bearing has deep grooves with arc tracks on both the inner and outer rings to accommodate radial loads. In addition to radial loads, deep groove ball bearings can accommodate axial loads in both directions and provide low friction torque and high-speed components. It is best suited for components rotating at high speeds and applications requiring low noise and low vibration.

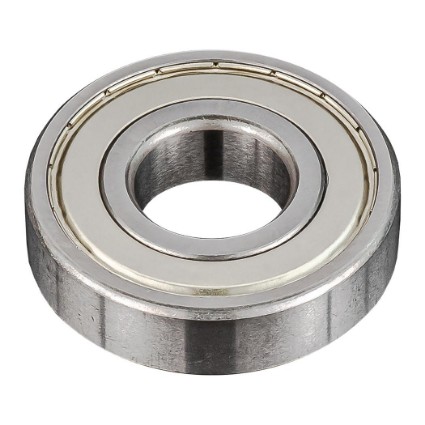

6204 Deep Groove Ball Bearing Features
Simple, versatile and robust design
Low friction
High speed capability
Accommodates radial and axial loads in both directions
Almost no maintenance required
Applications for Deep Groove Ball Bearings
NASR manufactures a full range of deep groove ball bearings. These multi-purpose bearings are the most common type of bearings and are used in a variety of applications including agricultural machinery (tractors, mowers), textile machines, transport/conveyors, film mills, powder/granule clutches, outboard boat motors, and more.
6204 Bearings Specifications:
| Product Name: | Deep groove ball bearings | Model: | 6204 bearings |
| Certification: | ISO9001-2015 | Country of origin: | Hebei province,China |
| Material: | Chrome steel | Structure: | Deep Groove |
| Type: | Ball Bearings | Bore Size:20 | mm |
| Model Number: | 6204 open,:6204ZZ,:6204 2rs | Precision Rating: | ABEC 1,ABEC 3,ABEC 5, ABEC 7 |
| Seals Type: | ZZ 2RS OPEN | Number of Row: | Single Row |
| Cage: | Steel Cage | Lubrication: | Oil or grease |
| Service: | OEM Service | Package: | Colorful box,White box,and plastic tube |
| Brand: | NSAR,3D,OWO,CBQ,NASA | Size: | 20X47X14MM |
| Products series: | Miniature ball bearings,such as 6204 zz 6000 series ,such as 6004 bearing 6200 series,such as 6205 bearing 6300 series,such as 6305 bearing 6900 series,such as 6903 bearing |
Sample: | Available |
| (Kn)Basic LoadRating | (Kn)Basic LoadRating | (r/min)LimitRotational Speed | (r/min)LimitRotational Speed |
| Dynamic Cr | Static Cor | Grease Lubrication |
Oil Lubrication |
| 12.8 | 6.65 | 14000 | 18000 |
| Weight | |||
| 0.106 |
Reasons to Choose NASR Deep Groove Ball Bearings
NSAR 6204 deep groove ball bearings has advanced manufacturing equipment:Forging,carefully turning,heat treatment,grinding many times,cleaning,cast block workshop,painting for blocks,final pallet packing,loading into container. It is can be applied to multiple industries. As an 6204 bearings supplier and manufacture, we provide high-quality 6204 bearing products.
We provide logo customization, and also accept ODM and OEM,the NSAR 6204 bearings are all low noise,low vibration,low friction,high precision,high sealed,high turning speed and long life.
6204 Bearings Structure:
| S – Materail Codes | Blank – Gcr 15(Chrome Steel) |
| S – Materail Codes | S – 440C (Stainless Steel) |
| F – Ring/OD Modification Codes | F – Flanged Outer Ring |
| F – Ring/OD Modification Codes | W – Extended Inner Ring |
| F – Ring/OD Modification Codes | FW – Flanged Outer/Extended Inner Ring |
| 608 | Basic Bearing Number Codes |
| 2RS _ Shield/Closure Codes | Blank – Open Bearing |
| 2RS _ Shield/Closure Codes | Z- Single Shield |
| 2RS _ Shield/Closure Codes | ZZ – Double Shields |
| 2RS _ Shield/Closure Codes | RS – Single Seal |
| 2RS _ Shield/Closure Codes | 2RS – Double Seals |
| NR – Snap Ring Codes | N – Groove Without Ring |
| NR – Snap Ring Codes | NR – Groove With Ring |
| C3 – Internal Clearance Codes | Blank – Standard |
| C3 – Internal Clearance Codes | C2 – Tight |
| C3 – Internal Clearance Codes | C3-Loose |
| C3 – Internal Clearance Codes | C4 – Loose Than C3 |
| C3 – Internal Clearance Codes | C5 -Loose Than C4 |
| V3 _ Vibration Level Codes | Blank – Standard |
| V3 _ Vibration Level Codes | V4 – Ultralow Noise |
| V3 _ Vibration Level Codes | V3 – Low Noise |
| V3 _ Vibration Level Codes | V2 – Electric Motor Quality |
| V3 _ Vibration Level Codes | V1 – Above Standard,Less Than V2 |
| A3 – ABEC Tolerance Codes | Blank – ABEC 1 |
| A3 – ABEC Tolerance Codes | A3 – ABEC 3 |
| A3 – ABEC Tolerance Codes | A5 – ABEC 5 |
| A3 – ABEC Tolerance Codes | A7 – ABEC 7 |
