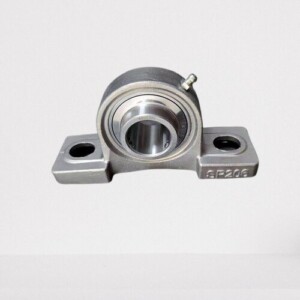

UCP 206 Stainless Steel Pillow Block Ball Bearings

UCP 206 Stainless Steel Pillow Block Ball Bearings

The UCP 206 Stainless Steel Pillow Block Ball Bearing is designed for exceptional durability and resistance to corrosion, making it an ideal choice for harsh environments and demanding applications. Featuring a robust stainless steel housing and high-precision ball bearing, it ensures smooth operation, stability, and extended service life.

Categories:

Contact Now

The UCP206 bearing is a two-bolt standard housing

This rugged housing features a fully sealed bearing core already installed in the housing, ensuring optimal performance and durability. Made from high-quality stainless steel, this housing provides superior strength and reliability for a wide range of applications.
Stainless Steel Pillow Block Ball Bearing are made from corrosion-resistant stainless steel, making them ideal for the food processing industry, water treatment plants, and desalination plants.

UCP bearings are available in a variety of sizes and configurations to accommodate different shaft diameters and loads. They are often used in conveying systems, agricultural machinery, mining equipment and other applications that require a bearing solution to ensure smooth rotation of the shaft.
Operating temperature range: -10°F to 250°F. Bearing seats are made of 304 stainless steel. They are often the most effective solution for high corrosion applications. UCP206
Bearings are widely used in construction equipment, agricultural equipment, forestry, aggregates, conveying systems and more.
When selecting a bearing seat, consider the environment, loads, and the size of the shaft to which it is mounted. For situations where contaminants are present, a durable and better sealed bearing seat is the best choice.

UCP206 bearing features:

Durable cast iron housing for extended service life
Pre-lubricated UC206 insert bearing ensures smooth operation
Double set screws for secure shaft locking
Suitable for high-speed, high-load environments
Easy to install and maintain

UCP206 bearing seats are widely used in:

Conveyor systems
Agricultural machinery
Mining equipment
Textile machinery
Food processing systems

UCP206 Bearing Specifications

Parameter Value
Bearing Number UCP206
Bearing Type Pillow Block Ball Bearing
Housing Material Stainless Steel
Insert Bearing SSUC206
Shaft Diameter (d) 30 mm
Base to Center Height (H) 38.1 mm
Overall Length (L) 167 mm
Bolt Hole Center Distance (J) 121 mm
Bolt Hole Diameter (N) 16 mm
Overall Height (A) 48 mm
Width of Housing (A1) 42.9 mm
Dynamic Load Rating (Cr) ~19.5 kN (varies slightly by brand)
Static Load Rating (Cor) ~11.3 kN
Grease Fitting Yes (Stainless Steel)
Sealing Type Rubber Seals on Both Sides

Shafts tend to bend at high speeds, which can negatively affect performance. Using NSAR Bearings‘ durable and strong housings, you can better support the rotating shaft in your application.

Whether you are replacing an existing component or building a new one, this product is the ideal choice for you. As a trusted UCP206 bearing supplier, NSAR Bearings offers competitive pricing and fast delivery.
Looking to upgrade or restock? Buy UCP206 bearings online today and enjoy the quality, performance, and convenience of compact bearings.
