Nossos rolamentos almofadados termoplásticos são uma alternativa premium aos rolamentos metálicos tradicionais. Projetados com materiais termoplásticos de alto desempenho, esses rolamentos oferecem excelente durabilidade, resistência à corrosão e facilidade de manutenção, tornando-os ideais para uma ampla gama de aplicações industriais.

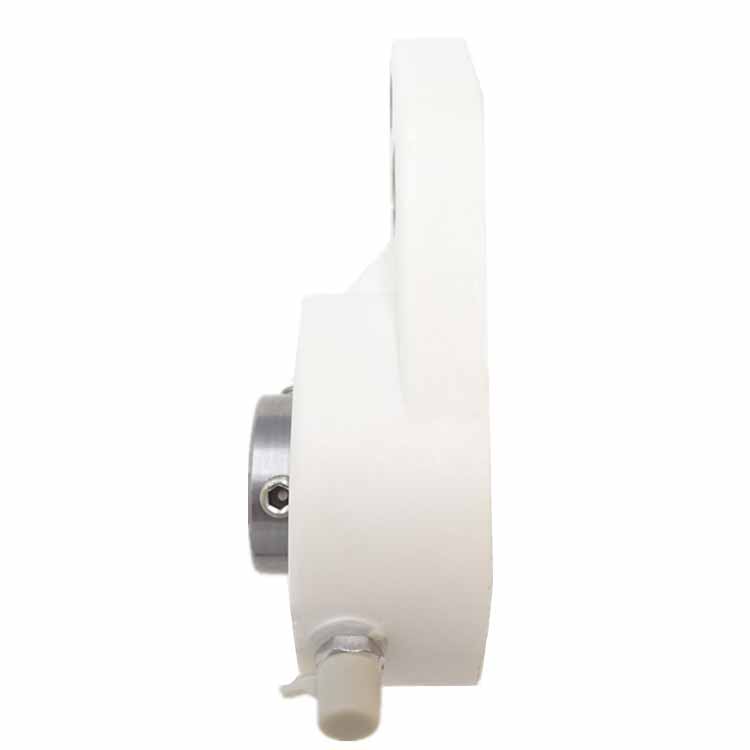

Our Plastic pillow block UCF bearings combine the corrosion-resistant properties ofthermoplastic housingswith the rugged design of UCF-style four-bolt flange bearings. These bearing units are designed to provide reliable shaft support in environments where conventional metal bearings may fail due to moisture, chemicals or hygienic requirements. Their design ensures easy installation, maintenance-free operation and suitability for a wide range of industrial applications.
Rolamentos de bloco de descanso de plástico

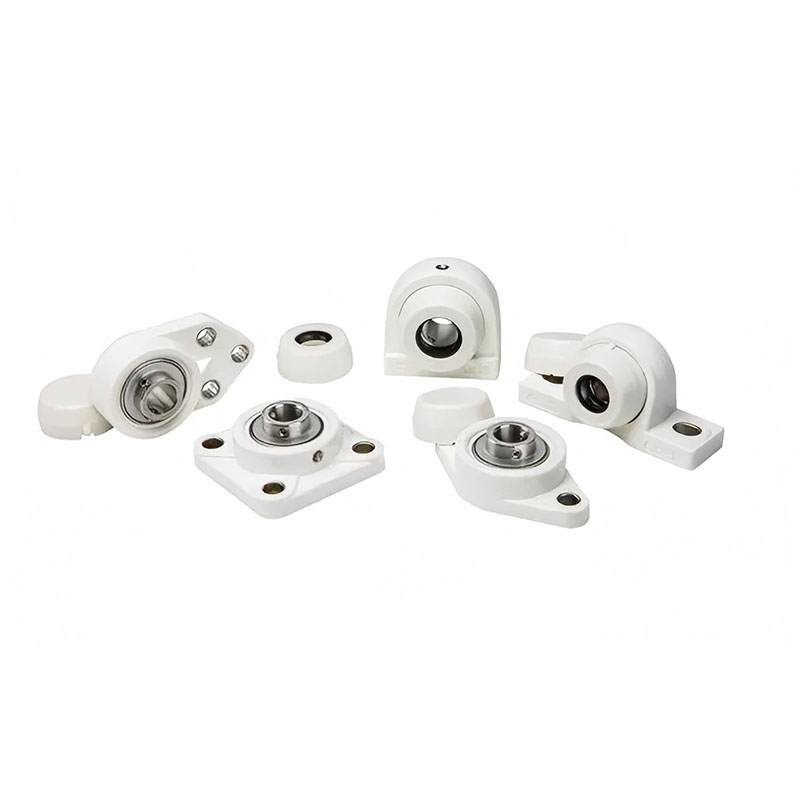

Plastic pillow block bearings feature housings made from high-performance thermoplastics that provide superior mechanical strength and dimensional stability. Unlike metal bearings, these bearings are inherently resistant to rust and corrosion, making them ideal for food processing, pharmaceuticals and other industries with stringent hygienic standards. The self-lubricating properties of plastic housings eliminate the need for external lubrication, reducing maintenance requirements and operating costs. In addition, plastic construction is lightweight without compromising durability.
UCF Bearings
UCF bearings are four-bolt flange bearing units designed to provide rugged shaft support. They consist of an insert bearing with an extended inner ring that is typically secured to the shaft using set screws. The square flange design allows for easy installation and alignment, accommodating shaft misalignment and reducing installation time. UCF bearings are used across a wide range of industries for their versatility and reliability.
Features include pre-lubricated bearings for ready installation, grease fittings for relubrication, and bonded seals for wet or dirty environments.
Resistência à corrosão
Fabricados com materiais termoplásticos avançados, nossos rolamentos tipo almofada são altamente resistentes à corrosão. Isso os torna ideais para uso em ambientes úmidos ou quimicamente agressivos, como processamento de alimentos, aplicações farmacêuticas e marítimas.
Construção leve
AINEsOs rolamentos almofadados termoplásticos são significativamente mais leves que os rolamentos metálicos. Esta construção leve permite fácil manuseio e instalação, o que reduz os custos de mão de obra e aumenta a eficiência operacional.
Propriedades autolubrificantes
As propriedades autolubrificantes dos materiais termoplásticos reduzem a necessidade de lubrificação adicional, minimizam os requisitos de manutenção e garantem uma operação mais suave e eficiente. Este recurso é particularmente benéfico em ambientes onde a limpeza é crítica.
Vibração e redução de ruído
The inherent properties of thermoplastics help absorb vibrations and reduce noise, resulting in quieter, smoother operation. This is particularly beneficial in applications such as medical devices, office machinery, and home appliances.
Chemical and UV resistance Our thermoplastic bearings are resistant to a wide range of chemicals and UV radiation and are therefore suitable for both indoor and outdoor applications. This resistance ensures long-lasting functionality even in harsh environmental conditions.
Tipo | Diâmetro do furo | Diâmetro do furo | Peso da carcaça (kg) | Bull.fiss. Tamanho do parafuso |
Tipo | d | d | Peso da carcaça (kg) | Bull.fiss. Tamanho do parafuso |
Tipo | em | milímetros | Peso da carcaça (kg) | Bull.fiss. Tamanho do parafuso |
UCFBPL 201 | 1/2 | 12 | 0,1 | M10 |
UCFBPL 202 | 16/09 08/05 | 15 | 0,1 | M10 |
UCFBPL 203 | 16/11 | 17 | 0,1 | M10 |
UCFBPL 204 | 3/4 | 20 | 0,1 | M10 |
UCFBPL 205 | 13/16 7/8 15/16 1 | 25 | 0,12 | M10 |
UCFBPL 206 | 1-1/16 1-1/8 1-3/16 1-1/4 | 30 | 0,16 | M10 |
UCFBPL 207 | 1-1/4 1-5/16 1-3/8 1-7/16 | 35 | 0,18 | M12 |
UCFBPL 208 | 1-1/2 1-9/16 | 40 | 0,23 | M12 |
Tipo | Dimensões (mm) | Dimensões (mm) | Dimensões (mm) | Dimensões (mm) | Dimensões (mm) |
Tipo | a | e | h | c | é |
UCFBPL 201 | 62 | 38,1 | 76,5 | 108,5 | 11 |
UCFBPL 202 | 62 | 38,1 | 76,5 | 108,5 | 11 |
UCFBPL 203 | 62 | 38,1 | 76,5 | 108,5 | 11 |
UCFBPL 204 | 62 | 38,1 | 76,5 | 108,5 | 11 |
UCFBPL 205 | 63,5 | 41,3 | 85,7 | 120,6 | 11 |
UCFBPL 206 | 75 | 47,6 | 98,5 | 140 | 11 |
UCFBPL 207 | 89 | 50,8 | 110 | 158 | 13 |
UCFBPL 208 | 78 | 50 | 114 | 164 | 13 |
Tipo | Dimensões (mm) | Dimensões (mm) | Dimensões (mm) | Dimensões (mm) | Dimensões (mm) |
Tipo | f | c | b | EU | g |
UCFBPL 201 | 22.2 | 42,9 | 62 | 26,5 | 12 |
UCFBPL 202 | 22.2 | 42,9 | 62 | 26,5 | 12 |
UCFBPL 203 | 22.2 | 42,9 | 62 | 26,5 | 12 |
UCFBPL 204 | 22.2 | 42,9 | 62 | 26,5 | 12 |
UCFBPL 205 | 28,6 | 46 | 69 | 33,5 | 12 |
UCFBPL 206 | 31,8 | 52,4 | 82 | 31,5 | 14 |
UCFBPL 207 | 31,8 | 60,3 | 94 | 36,5 | 17 |
UCFBPL 208 | 41,3 | 60,3 | 100 | 35,7 | 18 |
Tipo | Dimensões (mm) | Dimensões (mm) | Dimensões (mm) |
Tipo | eu | n | Bi |
UCFBPL 201 | 15.4 | 12,7 | 31 |
UCFBPL 202 | 15.4 | 12,7 | 31 |
UCFBPL 203 | 15.4 | 12,7 | 31 |
UCFBPL 204 | 15.4 | 12,7 | 31 |
UCFBPL 205 | 21 | 14.3 | 34.1 |
UCFBPL 206 | 19 | 15,9 | 38,1 |
UCFBPL 207 | 21.4 | 17,5 | 42,9 |
UCFBPL 208 | 21.4 | 19 | 42,9 |
Modo de carregamento
Modo de carga |
Classificações de carga (N) Classificações de carga (N) | Classificações de carga (N) Classificações de carga (N) | Classificações de carga (N) Classificações de carga (N) | Classificações de carga (N) Classificações de carga (N) | Classificações de carga (N) Classificações de carga (N) |
Tipo Tipo | 204 | 205 | 206 | 207 | 208 |
UCFBPL |
7200 | 9100 | 12200 | 12900 | 13600 |
UCFBPL |
9200 | 11100 | 11800 | 11900 | 12100 |
UCFBPL |
2600 | 2800 | 2900 | 3100 | 3300 |
