Conveyor roller bearings are pressed into the end of a conveyor roller, allowing the roller to rotate smoothly on its axis during conveying. Roller bearings support and guide rotating or oscillating
machine elements and transfer loads between machine parts.
Conveyor roller bearings are pressed into the end of a conveyor roller, allowing the roller to rotate smoothly on its axis during conveying. Roller bearings support and guide rotating or oscillating
machine elements and transfer loads between machine parts. As the name implies, conveyor roller bearings have a cylindrical shape and are designed to carry heavy loads. Each bearing is designed for a specific tube diameter and specification, as well as shaft size. We offer many standard roller bearings for you to purchase.
In industrial manufacturing environments, conveying equipment helps assemble, inspect, package, and distribute your products. Because it is so versatile and completes so many tasks, it needs to run perfectly around the clock. This means that every component that makes it run should be durable and efficient – even the smallest parts, such as conveyor roller bearings.
| Specification | Details |
| Material Options | Carbon Steel, Stainless Steel, Zinc-Plated Steel, Polymeric Materials |
| Bearing Types | Deep Groove Ball Bearings, Cylindrical Roller Bearings, Needle Roller Bearings, Plain Bearings |
| Load Capacity | 50 kg to 1000 kg or more per roller |
| Shaft Diameter | Common sizes: 20 mm, 25 mm, 30 mm |
| Outer Diameter | Range: 30 mm to 120 mm |
| Speed Rating | Typical: 0.1 m/s to 2 m/s |
| Sealing Options | Single-Sealed, Double-Sealed, Open, Shielded |
| Lubrication | Pre-lubricated (grease or oil), Maintenance-free options available |
| Temperature Range | Standard: -20°C to 80°C, High-temperature: Up to 200°C |
| Noise Level | Low-noise designs for quiet operations |
| Standards Compliance | ISO, DIN, or custom standards |
| Special Features | Anti-corrosion coatings, Anti-static properties, High-durability options |
Conveyor Roller Stamped bearings are generally composed of an inner ring, an outer ring, a stamped body and a cage. It relies on external forces such as presses and plates, strips, pipes and profiles to produce plastic deformation or separation to obtain workpieces of the required shape and size. The stamped blanks are mainly hot-rolled and cold-rolled steel plates and strips. Stamped flange bearings combine flanges and bearings into one, and are mainly used in various trolley wheels with large load-bearing capacity, conveyor rollers, travel wheels, and industrial and transportation equipment with high quality requirements. Stamped wheels can avoid wear and increase the load-bearing capacity of bearings.
Our high-quality bearings are engineered to excel in demanding industrial environments. Crafted from premium materials, they offer outstanding durability and resistance to wear, ensuring a long lifespan with minimal maintenance. These precision-engineered bearings provide a perfect fit, reducing friction and heat generation to enhance the efficiency of your machinery. Versatile and easy to install, our bearings are suitable for a wide range of applications.
From automotive to consumer electronics, our stamped bearings are engineered to excel in a variety of environments and applications. Explore our wide range of bearing solutions designed to meet the unique needs of your industry.
If you have an idea of what you need, use our product selector to help determine which bearing will meet your specific needs. If you have any questions, contact NSAR to find our information.
Children’s bicycles, luggage, shipping rollers, conveyor rollers, wheelchairs, lawnmowers, etc.

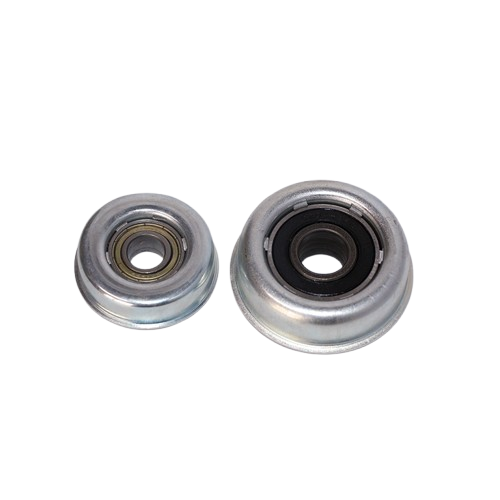

Below is a detailed picture of our stamping bearing products:
