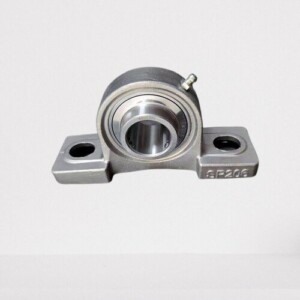

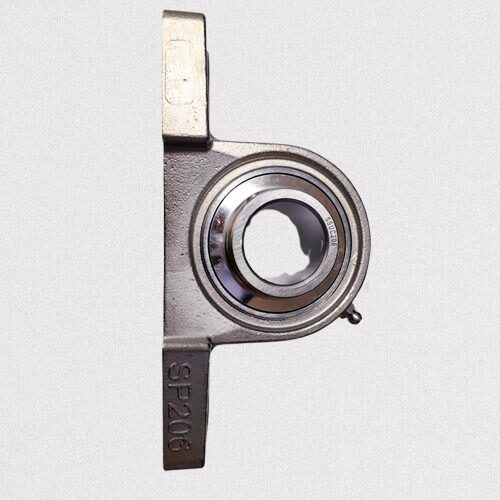

UCP 206 Bearing Specifications
Pillow Block Ball Bearings No.
Shaft Dia
Dimensions(mm)
d
mm
h
a
e
b
S1
S2
UCP 206
30
42.9
165
121
48
17
21
Pillow Block Ball Bearings No.
Shaft Dia
Dimensions(mm)
d
mm
g
w
n
Bi
Weight
UCP 206
45
17
83
15.9
38.1
1.2
Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
d | |||||||
mm | h | a | e | b | S1 | S2 | |
UCP 206 | 30 | 42.9 | 165 | 121 | 48 | 17 | 21 |
Pillow Block Ball Bearings No. | Shaft Dia | Dimensions(mm) | |||||
d | |||||||
mm | g | w | n | Bi | Weight | ||
UCP 206 | 45 | 17 | 83 | 15.9 | 38.1 | 1.2 |
UCP 206 Stainless Steel Pillow Block Ball Bearings Bearings Tolerances
UCP 206 Stainless Steel Pillow Block Ball Bearings Bearings Tolerances | |||||
Outer rings tolerances | |||||
D (mm) | △Dmp | Kea | |||
Over | Incl. | High | Low | Max. | |
30 50 80 120 150 180 250 | 50 80 120 150 180 250 315 | 0 0 0 0 0 0 0 | -11 -13 -15 -18 -25 -30 -35 | 20 25 35 40 45 50 60 | |
UCP 206 Bearings Cylindrical Bore Inner Rings Tolerances | |||||
d (mm) | △Dmp | Vdp max. | △Hs | △Bs | |
upper deviation | lower deviation | Vdp max. | upper deviation | lower deviation | |
>10~18 >18~30 >30~50 >50~80 >80~120 >120~180 | +15 +18 +21 +24 +28 +33 | 0 0 0 0 0 0 | 10 12 14 16 19 22 | +100 +100 +100 +100 +100 +100 | -100 -100 -100 -100 -100 -100 |
UCP 206 Bearings Cylindrical Bore Inner Rings Tolerances | |||||
d (mm) | △Bs | Kia max. | |||
upper deviation | lower deviation | Vdp max. | |||
>10~18 >18~30 >30~50 >50~80 >80~120 >120~180 | 0 0 0 0 0 0 | -120 -120 -120 -150 -200 -250 | 12 15 18 22 28 35 |
(UCP 206 Pillow Block Ball Bearings Notes):
1.ADmp
The deviation ofa single plane mean outside diameter of the outer ring.
2.Kea
Radial runout of assembled bearing outer ring.
3.Inner rings tolerances
4.Tolerances for cylindrical bore bearing inner rings.
Wholesale UCP 206 | UCP 206 Supplier
Welcome to UCP 206 manufacturer– NSAR, your trusted UCP 206 pillow block ball bearings factory in wholesale UCP 206 pillow block ball bearing! As leading UCP 206 pillow block bearing manufacturer in the bearings industry, we take immense pride in providing top-quality UCP 206, including UCP 202,UCP 203. NSAR offers a wide range of UCP 206 at the most competitive prices,which will provide you with a great shopping experience.
