Design features of 6805 bearings
The 6805 bearing is a special type of bearing designed for situations where space restrictions and weight reduction are key factors. The 6805 bearings has an inner diameter of 25 mm. The outer diameter is 37 mm. The width is 7 mm. It features a significantly smaller cross-sectional area compared to standard ball bearings. It is an open ball bearing designed for high speeds and high dynamic loads.
What are our 6805 bearings: 6805 open bearings, 6805ZZ bearings, 6805 2rs bearings
What benefits can 6805 bearings bring?
Space efficiency: Its slim design allows for more compact and space-saving machinery and equipment, making it ideal for space-constrained applications.
Load handling: Despite its slim profile, it is able to effectively handle radial and axial loads and maintain performance under a variety of stress conditions.
Low friction: It has low friction, which improves the efficiency of machinery and extends the service life of bearings and equipment.
Precision operation: This bearing has high precision, which is essential for applications that require precise and smooth motion control.
What are 6805 bearings used for?
6805 bearings are suitable for the following applications:
Aerospace Industry: Used in satellite and aircraft components where space and weight are primary considerations.
Medical Devices: Precision and compact design are essential in medical devices such as scanners and MRI machines.
Robotics and Automation: Ideal for robotics and automated machinery where space optimization is critical.
Consumer Electronics: Used in devices such as cameras and laptops to help achieve thin and light designs.
6805 Bearings 25X37X7mm Specifications & Dimensions:
| Product Name: | Deep groove ball bearings | Model: | 6805 bearings |
| Certification: | ISO9001-2015 | Country of origin: | Hebei province,China |
| Material: | Chrome steel | Structure: | Deep Groove |
| Type: | Ball Bearings | Bore Size: | 25mm |
| Model Number: | 6805 open,6805ZZ,6805 2rs | Precision Rating: | ABEC 1,ABEC 3,ABEC 5, ABEC 7 |
| Seals Type: | ZZ 2RS OPEN | Number of Row: | Single Row |
| Cage: | Steel Cage | Lubrication: | Oil or grease |
| Service: | OEM Service | Package: | Colorful box,White box,and plastic tube |
| Brand: | NSAR,3D,OWO,CBQ,NASA | Size: | 25X37X7MM |
| Products series: | Miniature ball bearings,such as 6805zz 6000 series ,such as 6004 bearing 6200 series,such as 6205 bearing 6300 series,such as 6305 bearing 6900 series,such as 6903 bearing |
Sample: | Available |
| (Kn)Basic LoadRating | (Kn)Basic LoadRating | (r/min)LimitRotational Speed | (r/min)LimitRotational Speed |
| Dynamic Cr | Static Cor | Grease Lubrication |
Oil Lubrication |
| 4.3 | 2.95 | 15000 | 19000 |
| Weight | |||
| 0.022 |
6805 Bearings Related Information:
| S- Materail Codes | .Blank – Gcr 15(Chrome Steel) .S- 440C(Stainless Steel) |
F-Ring/OD Modification Codes | . F-Flanged Outer Ring . W-Extended lnner Ring . FW-Flanged Outer/Extended lnner Ring |
| 2RS- Shield/Closure Codes | . Blank- Open Bearing . Z-Single Shield . ZZ- Double Shields . RS- Single Seal . 2RS- Double Seals |
N-Snap Ring Codes | . N-Groove Without Ring . NR- Groove With Ring |
| C3- Internal Clearance Codes | . Blank- Standard . C2-Tight . C3-Loose . C4-Loose Than C3 . C5-Loose Than C4 |
V3- Vbration Level Codes | . Blank- Standard . V4- Ultralow Noise . V3-Low Noise . V2-Electric Motor Quality . V1-Above Standard,Less Than V2 |
| A3- ABEC Tolerance Codes | . Blank-ABEC 1 . A3-ABEC 3 . A5-ABEC5 . A7-ABEC7 |

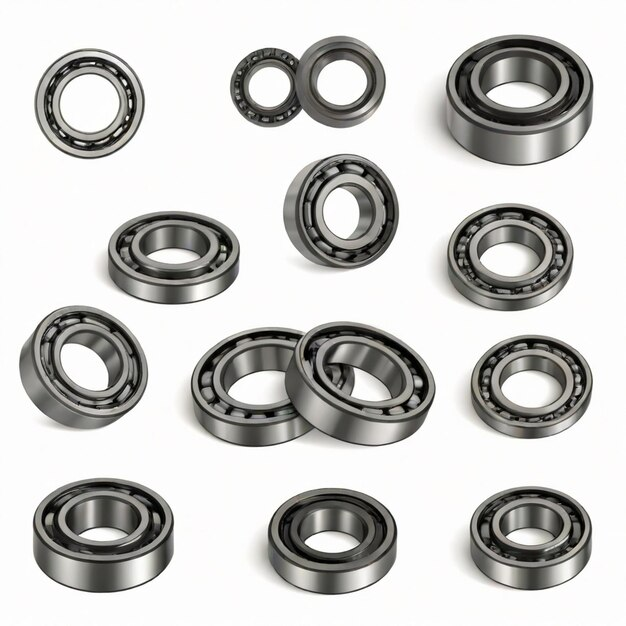

6805 Ball Bearings:
Deep groove ball bearings is steel ball bearings. NSAR bearings’s numbering system utilizes a basic bearings number to indicate the appropriate bearings series,and a complementary set of prefix and suffix designations which allow a complete description of any bearings configuration.
The 6805 is a 25 mm Ball Bearing that can be used in many rotary and factory automation applications. The 6805 Deep Groove Ball Bearings is an open style bearing.
The 6805ZZ ball bearing has a single row raceway and it is shielded on each side.
We are a 6805 bearings supplier, which will be shipped directly to you from 6805 deep groove ball bearings factory. And support custom 6805 deep groove ball bearing logo, 6805 bearing parts, 6805 bearings colour, etc.
We are committed to providing customers with the best 6805 ball bearing. You can contact us for more services.
6805 Ball Bearing Applicable:
Car bearings,Motorcycle,Skateboard,Bike,Ceiling fan,Gearbox,Manufacturing plant,Agriculture machinery
