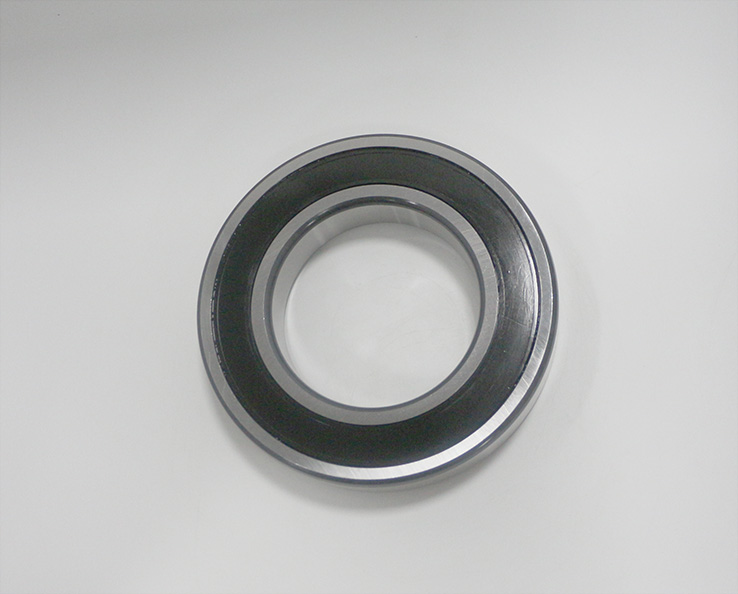

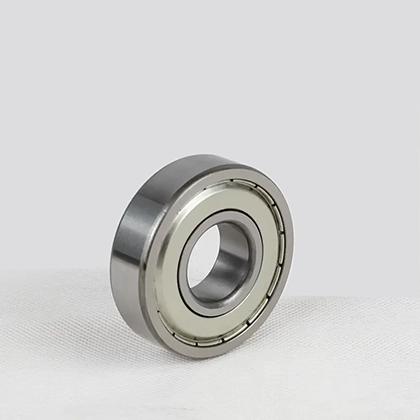

6010 Bearing Specifications:
| Product Name: | Deep groove ball bearings | Model: | 6010 bearing |
| Certification: | ISO9001-2015 | Country of origin: | Hebei province,China |
| Material: | Chrome steel | Structure: | Deep Groove |
| Type: | Ball Bearings | Bore Size:50 | mm |
| Model Number: | 6010 open,:6010ZZ,:6010 2rs | Precision Rating: | ABEC 1,ABEC 3,ABEC 5, ABEC 7 |
| Seals Type: | ZZ 2RS OPEN | Number of Row: | Single Row |
| Cage: | Steel Cage | Lubrication: | Oil or grease |
| Service: | OEM Service | Package: | Colorful box,White box,and plastic tube |
| Brand: | NSAR,3D,OWO,CBQ,NASA | Size: | 50X80X16MM |
| Products series: | Miniature ball bearings,such as 6010zz 6000 series ,such as 6004 bearing 6200 series,such as 6205 bearing 6300 series,such as 6305 bearing 6900 series,such as 6903 bearing |
Sample: | Available |
| (Kn)Basic Load Rating | (Kn)Basic Load Rating | (r/min)Limit Rotational Speed | (r/min)Limit Rotational Speed |
| Dynamic Cr | Static Cor | Grease Lubrication |
Oil Lubrication |
| 22.02 | 16.25 | 7000 | 9000 |
| Weight | |||
| 0.25 |
Deep Groove Ball Bearings Packing and Marks
NSAR bearings are packed into one plastic tube or wrapped rustproof paper then packed into carton, single package is also available , that is each set bearing is contained into small spastic bag and then packed into little paper box, The user who have special requirement in packing should point out in contract.
Rust-resisting
Under the normal storage and preserve protect condition, the bearing’s rust-resisting period is half a year over, you should have to check it over before the expiring date of rust-resisting has been past,then-rust-resisted again according to the stipulation so as to
keep them not rusty.
Clearance
in accordance with the standard of SO 5753.The radial clearance can be divided into five groups.Radial Clearance Value without
load See Table:
Gr(um)
6010 Deep groove ball bearing radial clearance
| Bore diameter D(mm) | Bore diameter D(mm) | Group 2 | Group 2 | Standard group | Standard group |
| over | to | Min | Max | Min | Max |
| 2.5 | 6 | 0 | 7 | 2 | 13 |
| 6 | 10 | 0 | 7 | 2 | 13 |
| 10 | 18 | 0 | 9 | 3 | 18 |
| 18 | 24 | 0 | 10 | 5 | 20 |
| 24 | 30 | 1 | 11 | 5 | 20 |
| 30 | 40 | 1 | 11 | 6 | 20 |
| 40 | 50 | 1 | 11 | 6 | 23 |
| 50 | 65 | 1 | 12 | 8 | 28 |
| Bore diameter D(mm) | Bore diameter D(mm) | Group 3 | Group 3 | Group 4 | Group 4 |
| over | to | Min | Max | Min | Max |
| 2.5 | 6 | 8 | 23 | — | — |
| 6 | 10 | 8 | 23 | 14 | 29 |
| 10 | 18 | 11 | 25 | 18 | 33 |
| 18 | 24 | 13 | 28 | 20 | 36 |
| 24 | 30 | 13 | 28 | 23 | 41 |
| 30 | 40 | 15 | 33 | 28 | 46 |
| 40 | 50 | 18 | 36 | 30 | 51 |
| 50 | 65 | 23 | 43 | 38 | 61 |
| Bore diameter D(mm) | Bore diameter D(mm) | Group 5 | Group 5 | ||
| over | to | Min | Max | ||
| 2.5 | 6 | — | — | ||
| 6 | 10 | 20 | 37 | ||
| 10 | 18 | 25 | 45 | ||
| 18 | 24 | 28 | 48 | ||
| 24 | 30 | 30 | 53 | ||
| 30 | 40 | 40 | 64 | ||
| 40 | 50 | 45 | 73 | ||
| 50 | 65 | 55 | 90 |
Note: C2 group clearance only for bearings over 6 grade accuracy
Provide 6010 bearing for sale, our price and quality are more advantageous than other sellers. We are a 6010 bearing supplier, which will be shipped directly to you from 6010 deep groove ball bearings factory. And support custom 6010 deep groove ball bearing logo, 6010 bearing parts, 6010 bearings colour, etc.
We are committed to providing customers with the best 6010 ball bearings. You can contact us for more services. Just leave us a message to get product quotations and related details.
Look forward to cooperating with you! The updated 6010 bearings are more durable and wear-resistance.

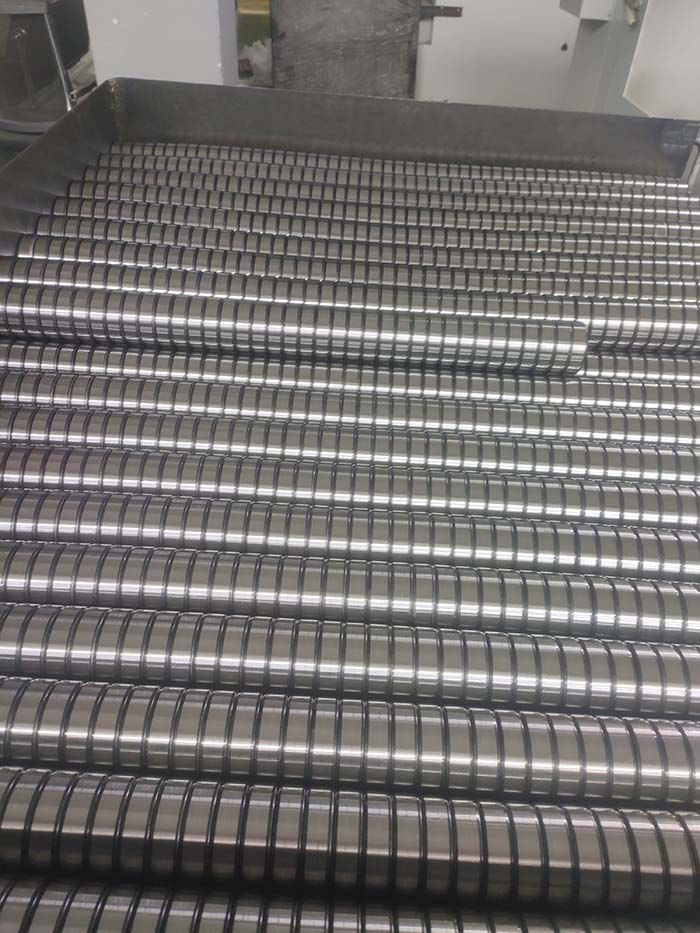

NSAR Deep Groove Ball Bearing Lathe
