Needle roller bearings have the capacity of decreasing friction, and thereby enabling easy operations in numerous systems. Nonetheless, such bearings may require to be removed to serve the purpose of maintenance, replacement or repair. Learning the methods of removing needle roller bearings is crucial to avoid any damage to bearing and the nearby parts during the process. Several methods of extracting needle roller bearings will be discussed in this article. There are strengths and optimal approaches associated with each method, which will be explained in this guide.
Understanding Needle Roller Bearings

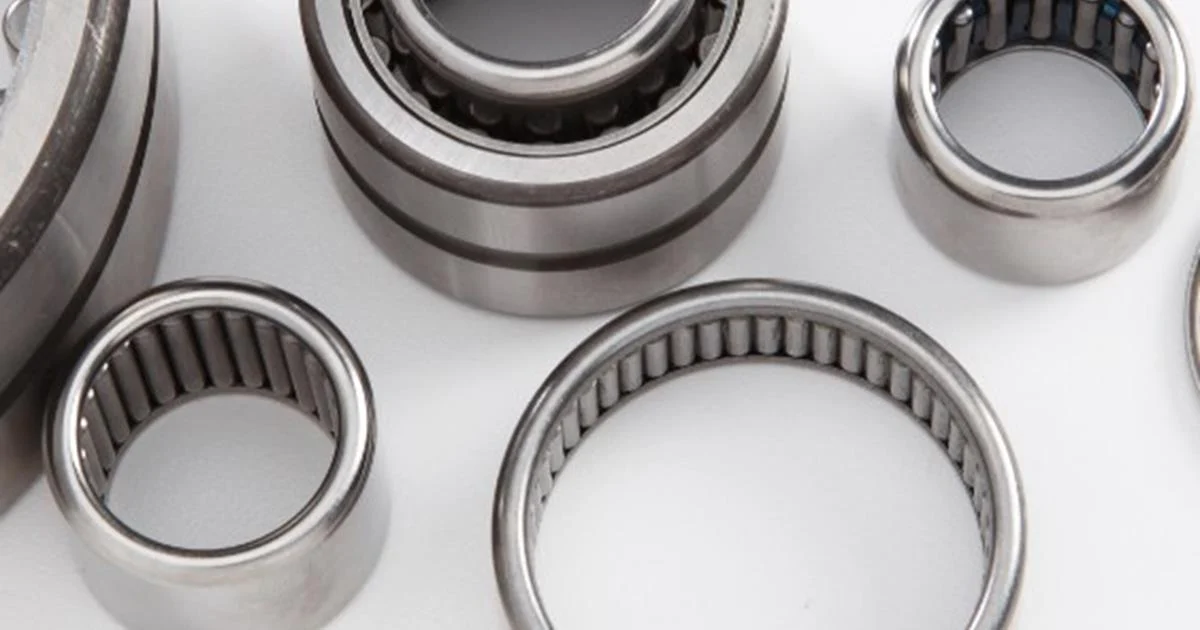

Now, let me explain what needle roller bearings are before proceeding to the various removal techniques of the same. These bearings consist of a series of long, thin rollers that are significantly longer than their diameter. It is possible to achieve high load carrying capacity with needle roller bearings when the bearings are designed in this manner and at the same time occupy minimal space. This radial structure is especially advantageous in applications with restricted mounting sizes.
The design and material of the needle roller bearings make it have high load carrying capacity. They can be designed without an inner ring using the shaft itself as the rolling element, which may well reduce both size and mass. This makes the proper methods of installation and removal to be an important factor when it comes to their functionality.
Methods to Remove Needle Roller Bearings
1. Knocking Method
The knocking method is one of the simplest and most frequently utilized in order to remove needle roller bearings. It includes the use of force during the removal of the bearing through tapping on the bearing. Here’s how to do it effectively:
Steps for the Knocking Method
Gather Your Tools: Now you will also need a soft metal rod – preferably copper or aluminum, hammer and spacers.
Prepare the Work Area: It is also important to have a pristine environment throughout the process and therefore have a stable work surface.
Position the Bearing: Should the bearing be positioned at the end of the shaft, use a rod, the outer diameter of which is less than the inner diameter of the bearing. This rod will be mounted opposite to the shaft end. NSAR Bearings needle roller bearings have unique roller and raceway contours that reduce stress concentrations that cause early failure of the bearings.
Add Spacers: Put a spacer underneath the bearing. This will give you firm foundation and should help protect the area around you from being damaged by any force that you apply.
Apply Tapping Force: Gently hit the soft metal rod with the hammer. But, the force should be concentrated on the inner ring of the bearing. Don’t hit the rolling elements and the cage because they will be harmed.
Monitor Alignment: When tapping, it is also important that the bearing is moving up and down in a straight line. If alignment is lost, the position of the spacer should be adjusted.
Cautions and Considerations
Where the knocking process is used, it is rather effective, however, the process may cause harm if done with a lot of force. One of these considerations is aimed at making sure that the force applied is well controlled and well directed. Tapping on the bearing area should cause the bearing to move, thus if it does not move then check your alignment of the channel and force application once again.Contact us for roller bearing information.
2. Hot Break Method
The mentioned hot break method is more effective in the case of narrow needle roller bearings. This technique makes use of expansion – thermal to be precise – in the removal process.
Steps of the Hot Break Method
Prepare the Oil: Warm oil to around 75-80 C or 165- 172 F, simply because the maximum temperature you have to reach will be 100 C or 212 F. This oil will be used to spread the bearing ring.
Apply the Oil: Gradually pour the hot oil on the bearing which is to be removed. While using this type of furnace, it is also important to heat the bearing evenly to avoid chances of center cracking.
Wait for Expansion: Let the bearing stand for some time, preferably a few minutes. It is anticipated that the heat will alter the expansion of the bearing ring and consequently reduce the tightness of its interaction with the shaft.
Use a Puller: Once the bearing is hot enough for you to bear the smell, then utilize a bearing puller to remove it from the shaft. For this reason, the puller should be placed properly and aligned well so that it does not pull off center.
Pull Gradually: Start to withdraw the bearing gradually. Make arrangement that the puller is centrally positioned and that no pressure is applied at one side.
Advantages and Limitations
The hot break method is suitable in the removal process of tightly fitted bearings without applying extra force. Nevertheless, it involves risk when working with hot oil, which may lead to burning or spilling of the oil. Avoid direct contact with hot substances or wear protective clothing each time you are dealing with heat.
3. Push Method
The technique of using a press for disassembling needle roller bearings is also a stable and effective method of operation, which significantly reduces the likelihood of damage to the bearings and adjacent equipment.
Steps for the Push Method
Set Up the Press: Place the bearing in either a hydraulic or mechanical press. Make sure that the crucial point of the work is focused on the shaft.
Align the Components: Make sure that all components are set into the right position before applying force.
Press the Bearing Out: Ease pressure using the press and apply it in progress. Keep an eye on the bearing as it starts to spin or turn.
Avoid Biasing: Make sure that the force is spread out and that the press does not become out of whack which harms the device.
Complete the Removal: When the bearing is completely pressed out one must check whether the bearing is spoiled or not.
Benefits of the Push Method
The push method is advantageous in that it provides the needed stability to eliminate the risk of damaging certain components when making some removals. This is most suitable for cases that demand accuracy and it can suit a large number of bearing sizes.
4. Pull-Out Method
The pull-out method is in fact carried out with the help of a puller that is used for needle roller bearings. This is a method that provides for controlled removal and may be used in both inner and outer ring removal.
Steps for the Pull-Out Method
Select the Correct Puller: The size of the puller should match that of the needle roller bearing that you’re pulling out.
Position the Puller: Fasten the puller onto the bearing such that the element is accurately positioned.
Adjust the Legs: In performing outer ring removal, the legs of the puller should be positioned in the outwards direction. During inner ring removal the legs should be inclined inwards so that they touch the end face of the inner ring.
Rotate the Handle: Slowly turn the handle of the puller clockwise and anti-clockwise. Doing this will gradually cause the bearing to be pulled out from the housing.
Monitor Progress: As the bearing is pulled look at the direction it comes out to ensure it is aligned properly.
